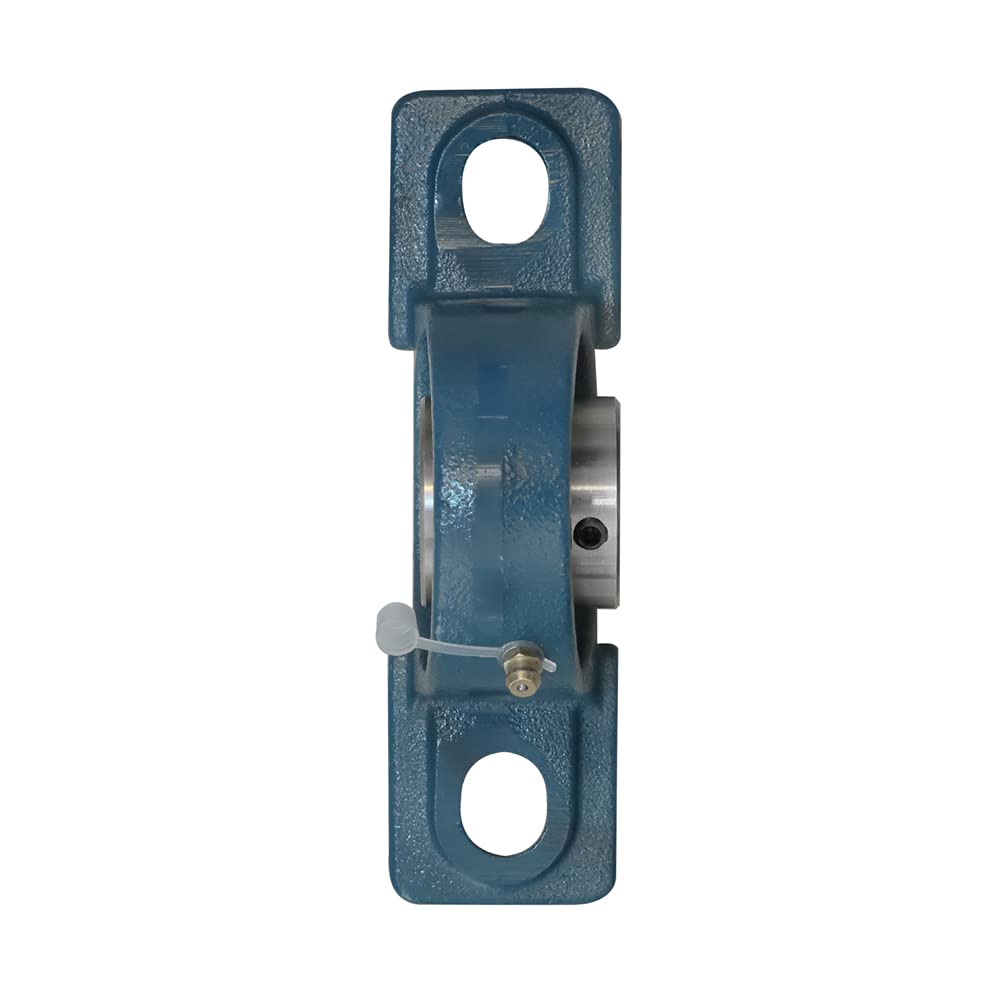

MAPLE ACE UCP215-48 Pillow Block Bearing 3" Bore, 2-Bolt, Self-Aligning, Heavy Duty (Qty 2)

This UCP PILLOW BLOCK MOUNTED BEARING consists of an INSERT BEARING and a CAST IRON housing. The PILLOW BLOCK can be mounted on levelled surfaces using the Two Bolt Holes. Grease Fitting Offset on top, to Relubricate the bearing. The INSERT BEARING has Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination. Bearing is Pre-Lubricated with High-Quality Grease ideal for use in High and Low-temperature settings. Has a Set Screw Lock on its surface, for securing the shaft. - Specification: Item UCP215-48, Series UCP200, Bearing Number UC215-48, Housing Number P215, Bearing Bore Diameter Metric 76.20 mm, Bearing Bore Diameter Inch 3 in, bearing Width Inner Ring Matric 77.80 mm, Bearing Width Inner Ring Inch 3.063 in, Bolt Size 3/4 in, Number of Bolts 2, Bolt Hole Center to Center (e) Matric 217 mm, Bolt Hole Center to Center (e) Inch 8.543 in, Overall Length (a) Matric 275 mm, Overall Length (a) Inch 10.83 in, Overall Height (w) Matric 162 mm, Overall Height (w) Inch 6.378 in, Overall Width (b) Matric 74.00 mm, Overall Height (b) Inch 2.913 in, Mounting Surface to Shaft Center (h) Matric 82.60 mm, Mounting Surface to Shaft Center (h) Inch 3.252 in, Dynamic Load Rating Cr 66300 N, Static Load Rating Cor 49000 N, Limiting Speed 2600 r/min, Bearing Clearance Normal, Bearing Sealing type Contact standard, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Rolling Element Indicator Ball, Bearing Material Gcr15, Housing Material H200 Cast Iron, Locking Type Set Screws, Weight 6.400 KG.

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED
