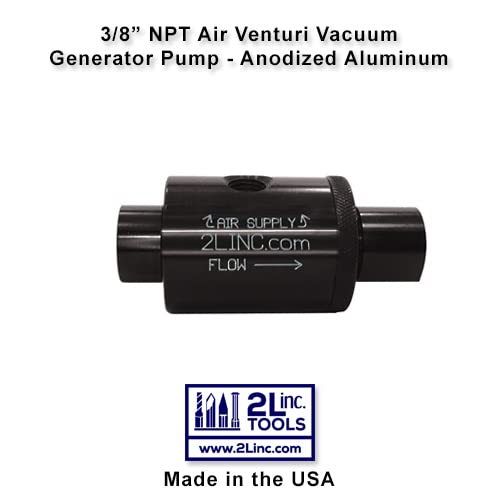

3/8" NPT Air Venturi Vacuum Generator Pump (Anodized Aluminum) with .375" (9.5 mm) Bore Diameter

The Air Venturi Vacuum Generator Pump is used for workholding, fixturing, clamping applications (Vacuum Chucks, custom hold down fixturing, suction cups, etc.), and solid or liquid materials transfer. It can also be used as an AC Vacuum Pump to evacuate air conditioning systems. The Air Venturi Vacuum creates a vacuum by supplying compressed air to the supply port. When air pressure is applied, the Air Venturi creates a vacuum at one end. The air is then exhausted out the other end. - Straight through design prevents clogging and passes materials, dirt, liquids, and contaminants. - Solid Anodized Aluminum construction allows for use in harsh, dirty environments and clean rooms. - Standard 3/8" NPT Connection for easy installation. - Maximum vacuum generated is 22"HG - 26"HG (10.8psi - 12.8 psi). - The Vacuum may be adjusted from 0"HG to the maximum vacuum by loosening the locking nut and turning the exhaust end of the vacuum. - Only 70-80 psi air pressure is required to obtain the maximum vacuum. - Use with 2L No-Clog Air Exhaust Silencer #10032 for air exhaust noise reduction.

• Adjustable from 0" HG to Maximum Vacuum of 22"HG - 26"HG (10.8psi - 12.8 psi)
• 3/8" NPT Connections for easy installation
• Vacuum Flow: 15.0 SCFM Vacuum and 15.0 SCFM Air Usage at 80psi and adjusted to maximum vacuum

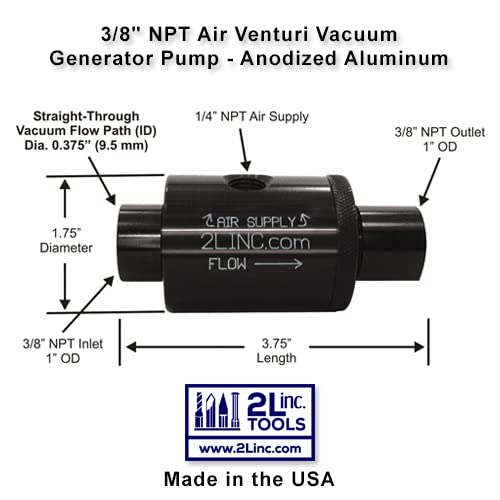

• 0.375" (9.5 mm) Diameter of Straight Through Vacuum Flow Path (Bore Diameter)
• Constructed of Solid Anodized Aluminum
